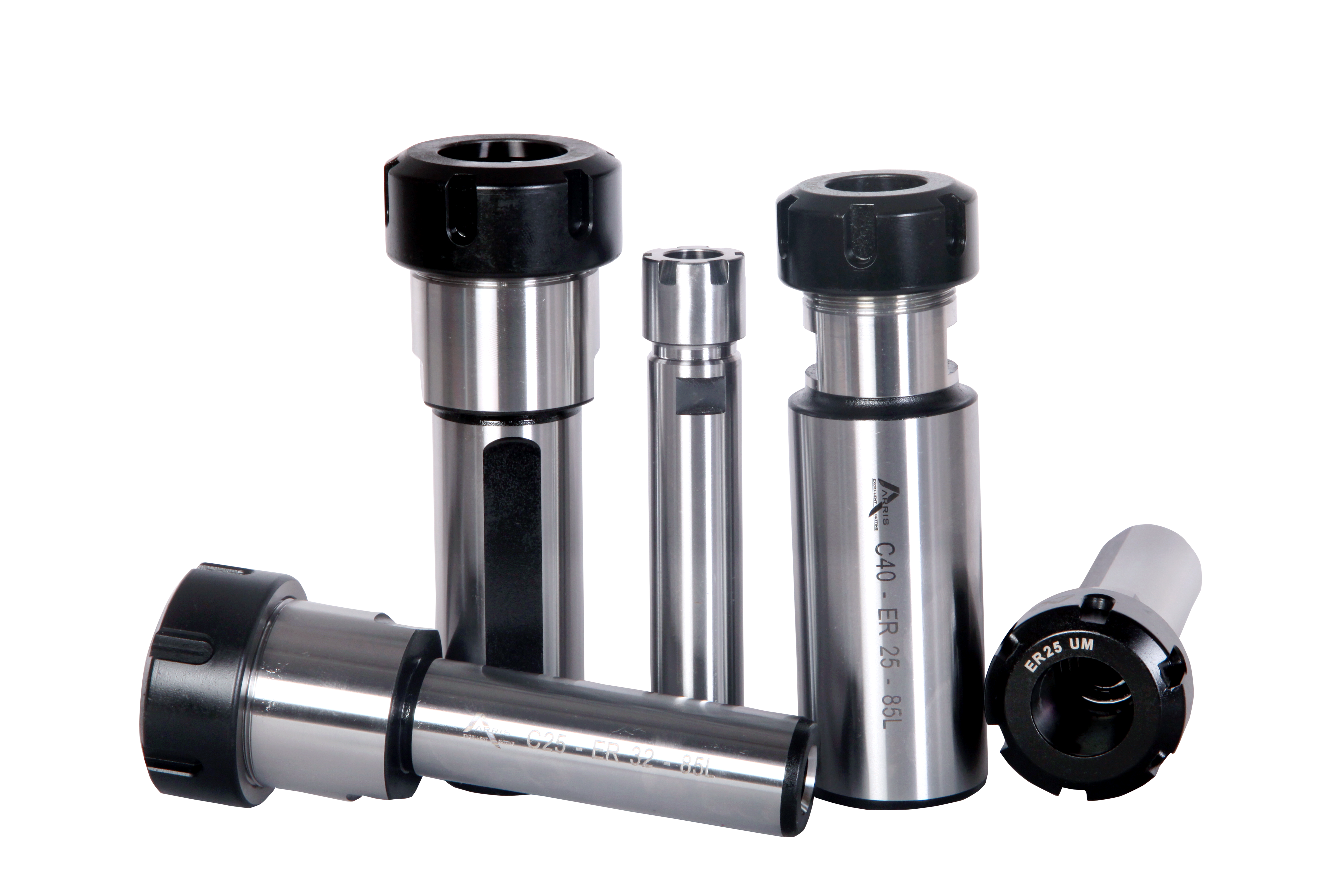

Cylindrical Chuck Baby Collet Manufacturer in India
Machining solutions for demanding processes
We are Arris Tooling, a leading cylindrical chuck and baby collet manufacturer in India, providing precision collets and chucks for aerospace, medical, and electronics industries. Our products are manufactured in a state-of-the-art facility and shipped to industrial clients worldwide with consistent quality and performance.
Our cylindrical chucks and baby collets have AT3 class tolerance, low runout, and excellent balance, making them suitable for challenging milling operations. As such, they find application in aerospace, medical, and electronic industries.
Choosing the right products from a cylindrical chuck baby collet manufacturer can help reduce precision-milling issues and increase tool life.
Manufacturing Process of Baby Collets and Cylindrical Chucks
Though finished differently, our baby collets and cylindrical chucks are manufactured similarly. The production process has multiple common steps, such as:
Forging
Reshaping high-grade steel alloy billets into production-ready blanks.
Rough Cutting
Producing preliminary geometries and core dimensions.
Carburizing
Heat-treating to increase surface hardness while maintaining core softness.
Machining
Finishing components and providing excellent tolerances using 4th- and 5th-axis VMC machines.
Inspecting
Checking the final components using surface hardness testers and precision gauges to confirm compliance with industry standards.
Cylindrical Chuck Technical Details
| Specification | Details |
|---|---|
| Material | Steel Alloy |
| Length (mm) | 65, 100, 150 |
| Diameter (ɸD) (mm) | 42, 50, 63 |
| Bore (mm) | 25, 32, 40 |
| Suitable Collet (ER) | 25, 32, 40 |
| Suitable Nuts | UM |
| Runout (mm) | ≤ 0.005 |
| Balance | G2.5 @ 25,000 rpm |
| Shank Interface | Straight Shank |
| Industry Standards | ISO 9766, DIN 1835 |
Baby Collet Technical Details
| Specification | Details |
|---|---|
| Material | Steel Alloy |
| Length (mm) | 100, 150 |
| Diameter (ɸD) (mm) | 12, 16, 22, 28 |
| Bore (mm) | 8, 10, 12, 16, 20 |
| Suitable Collet (ER) | 8, 11, 16, 20 |
| Suitable Nuts | M, A/M |
| Runout (mm) | ≤ 0.005 |
| Balance | G2.5 @ 25,000 rpm |
| Shank Interface | Straight Shank |
| Industry Standards | ISO 9766, DIN 1835 |
Why Choose Arris Tooling as a Cylindrical Chuck Baby Collet Manufacturer
As a trusted cylindrical chuck baby collet manufacturer, we deliver precision-engineered solutions with AT3 tolerance chucks, low-runout collets, and excellent balance for high-speed CNC milling applications.
Proven Expertise
Manufacturing cylindrical chucks and baby collets for more than 10 years.
Precision Tooling
Leveraging production knowledge and modern machinery to produce accurate geometry.
Efficiency Experts
AT3 class tolerance, G2.5 balance, and TIR ≤ 0.005 mm—our tools are designed to perform brilliantly at high speeds.
Global Presence
We export to industrial manufacturers in the US, the UK, Canada, and Brazil. Additionally, we supply to industries in the UAE, Saudi Arabia, Qatar, Japan, and Taiwan.
Application and Usage of Baby Collets and Cylindrical Chucks
Baby collets and cylindrical chucks are used across multiple industries for their high concentricity, compact geometry, and the ability to reach deep into tight spaces.
Aerospace
Baby collets are used for high-speed machining of complex components and flight-certified parts. Cylindrical chucks are used for extending tool reach.
Medical Devices
Baby collets are used for their ability to work with thin components on account of their uniform clamping force. Cylindrical chucks are used for their superior grip strength.
Die and Mold
Baby collets are prized because of their ability to reach deep milling pockets. Their narrow profile ensures that there’s no windage while machining.
Electronics
Baby collets are sought-after for their high concentricity. They are routinely used for micro-engraving machines and CNC routers.
Watchmaking and Jewelry
Baby collets are extensively used because of their slim profile and the ability to perform consistently at high speeds.
Discuss Your Baby Collets and Cylindrical Chuck Needs
Our experts can help you learn more about custom solutions, MOQs, and lead times.
