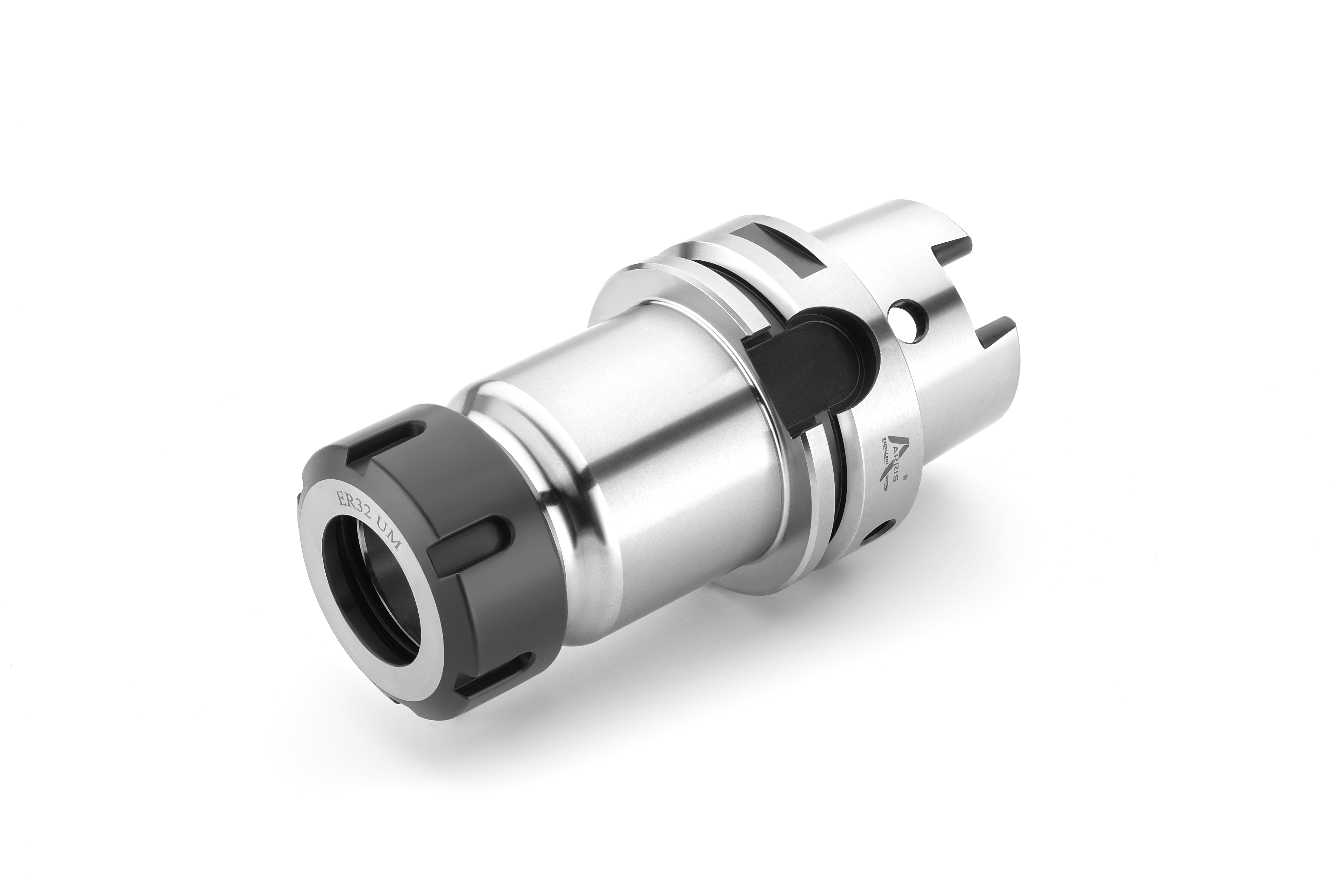

Precision TIR Runout Tool Holders Suppliers
Minimal runout and excellent balance across interfaces
Modern machining is becoming increasingly complex, requiring tool holders that are not just robust but precise. At high speeds, a single wobble can cause spindle damage and ruin the part being produced.
Manufacturers across industries are increasingly choosing VMC tools with total indicated runout (TIR) less than 0.005mm. As precision TIR runout tool holders suppliers, Arris Tooling offers high precision tool holders designed for CNC and VMC applications requiring low runout and consistent machining accuracy.
Our ISO 9001:2015 certified state-of-the-art manufacturing unit produces shrink-fit holders, hydraulic chucks, and other precision components. Available in multiple interfaces such as HSK, SK, CAT, BBT, and BT for diverse CNC and machining applications.
Manufacturing Process Used by Precision TIR Runout Tool Holders Suppliers
Creating precision TIR tool holders for VMCs and HMCs involves multiple steps as follows:
Forging
Turning alloy billets into production-ready blanks.
Rough Cutting
Creating preliminary geometry on the blanks.
Carburizing
Heat-treating the rough blanks to increase their carbon content, ensuring adequate surface hardness while maintaining a resilient core.
Machining
Perfecting the geometry, transforming the rough cut blanks into high precision tool holders that ensure superior concentricity and tool holder accuracy in high-speed machining operations.
Inspecting
Checking the tool holders for external and internal inaccuracies and ensuring they meet industry standards.
Our Range of Precision TIR Runout Tool Holders
As precision TIR runout tool holders suppliers, we provide businesses with off-the-shelf and custom TIR runout tool holder solutions. Our shrink-fit holders and hydraulic holders are available with multiple interfaces and function as high-performance CNC tool holders, offering excellent balance for high-speed machining applications.
Hydraulic Holders
| Specification | Details |
|---|---|
| Material | Steel-alloy |
| Runout (TIR) | ≤ 0.005 mm |
| Balance | G2.5 @ 25,000 rpm |
| Interfaces | HSK-A, SK, CAT, BT |
Shrink-Fit Holders
| Specification | Details |
|---|---|
| Material | Steel-alloy |
| Runout (TIR) | ≤ 0.005 mm |
| Balance | G2.5 @ 25,000 rpm |
| Interfaces | HSK-A, SK, CAT, BT |
Both our precision tool holder offerings showcase excellent taper-to-bore-runout, rigidity, and balance, ensuring consistent concentricity in machining and reliable performance in demanding industrial applications. For a complete list of details for our precision TIR runout tool holders as well as other offerings, please refer to our catalog.
Why Choose Arris Tooling as Your Preferred Precision TIR Runout Tool Holders Suppliers
At Arris Tooling, we are serious about providing precision instruments. Our precision tools are finished on 4th- and 5th-axis VMC machines used to create complex geometries without compromising accuracy. Additionally, we test each tool using a range of precision gauges to ensure it meets your requirements and industry standards.
Industrial experience
Over a decade of experience in producing precision tool holders.
Centralized production
From concept to creation in the same facility.
Quality control
AT3 class tolerance across the board with G6.3 and G2.5 balance. Tested with Mahr surface testers and HAIMER machines.
High precision manufacturing
Engineered for low runout tool holders used in CNC, VMC, and HMC applications requiring consistent performance in high-speed machining.
Export readiness
Supplying to all major countries, including the US, the UK, Canada, Brazil, the UAE, Saudi Arabia, Japan, and Taiwan.
Discuss Your Precision TIR Runout Tool Holders Requirements
Get in touch to learn more about lead times, MOQs, and custom solutions available for your needs.
